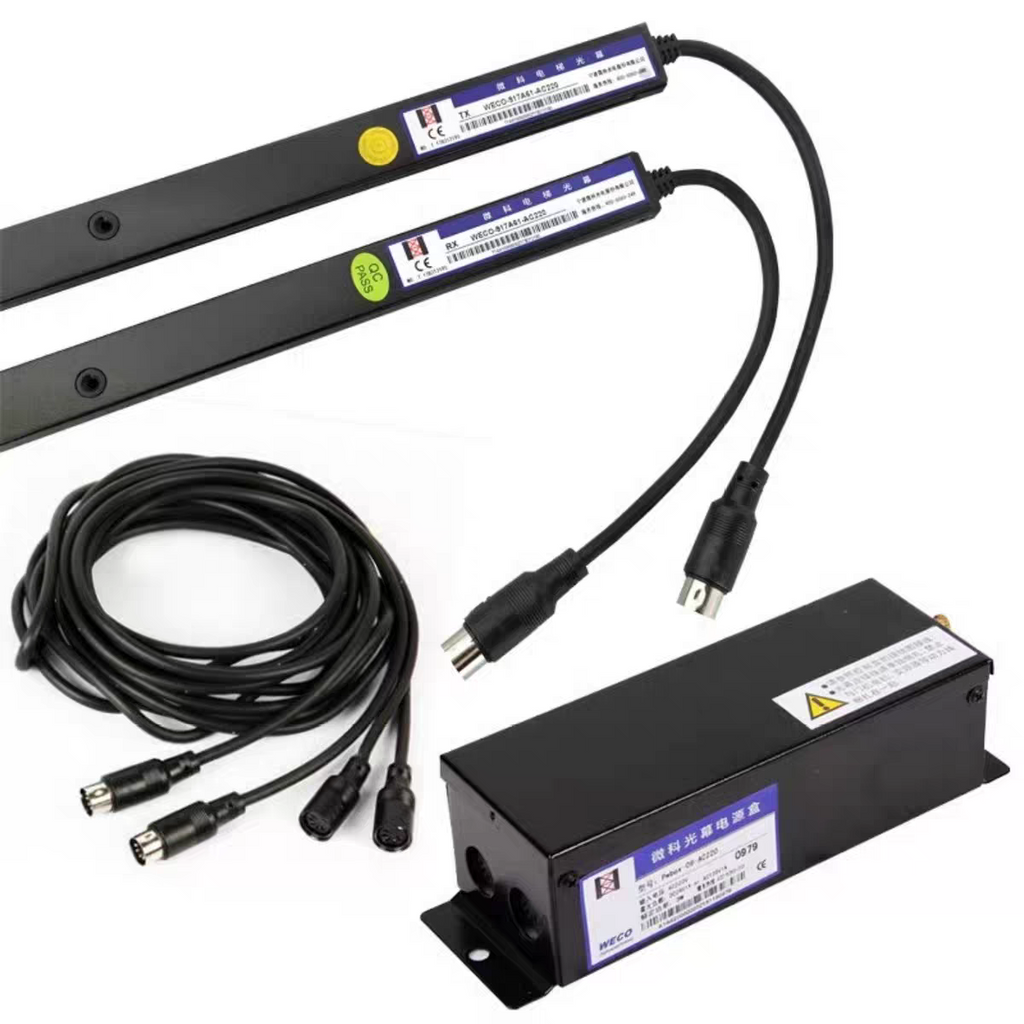

WECO Elevator Door Detector – Infrared Light Curtain (电梯门光幕)
The WECO series elevator door detector uses multi-beam infrared technology to provide reliable, high-speed door safety protection for passenger and freight elevators. Compliant with EN12015/EN12016 and GB7588 standards, suitable for standard and side-opening door configurations.
Available Series
- WECO-917 Series – Standard performance
- WECO-957 Series – Enhanced performance
- WECO-987 Series – High performance
Key Technical Features
| Parameter | Specification |
|---|---|
| Infrared Diode Sets | 17 / 20 / 32 / 36 / 40 / 48 sets |
| Response Time (Relay) | 65ms – 81ms |
| Response Time (Transistor) | 60ms – 76ms |
| Scanning Beams | 94–234 beams depending on model |
| Infrared Diode Distance | 40mm – 118mm |
| Detecting Range | 0 – 4000mm |
| Lowest Diode Set | ≥420mm |
| Highest Diode Set | ≤1600mm – ≤1900mm |
| Operating Temperature | -20°C ~ +65°C |
| Light Immunity | 100,000 Lux (Sunlight proof) |
Power & Output Options
- AC220V / AC110V / DC24V power supply
- Relay output (1NO/1NC) or transistor output (NPN/PNP)
- Multiple output configurations: DC24A–DC24S

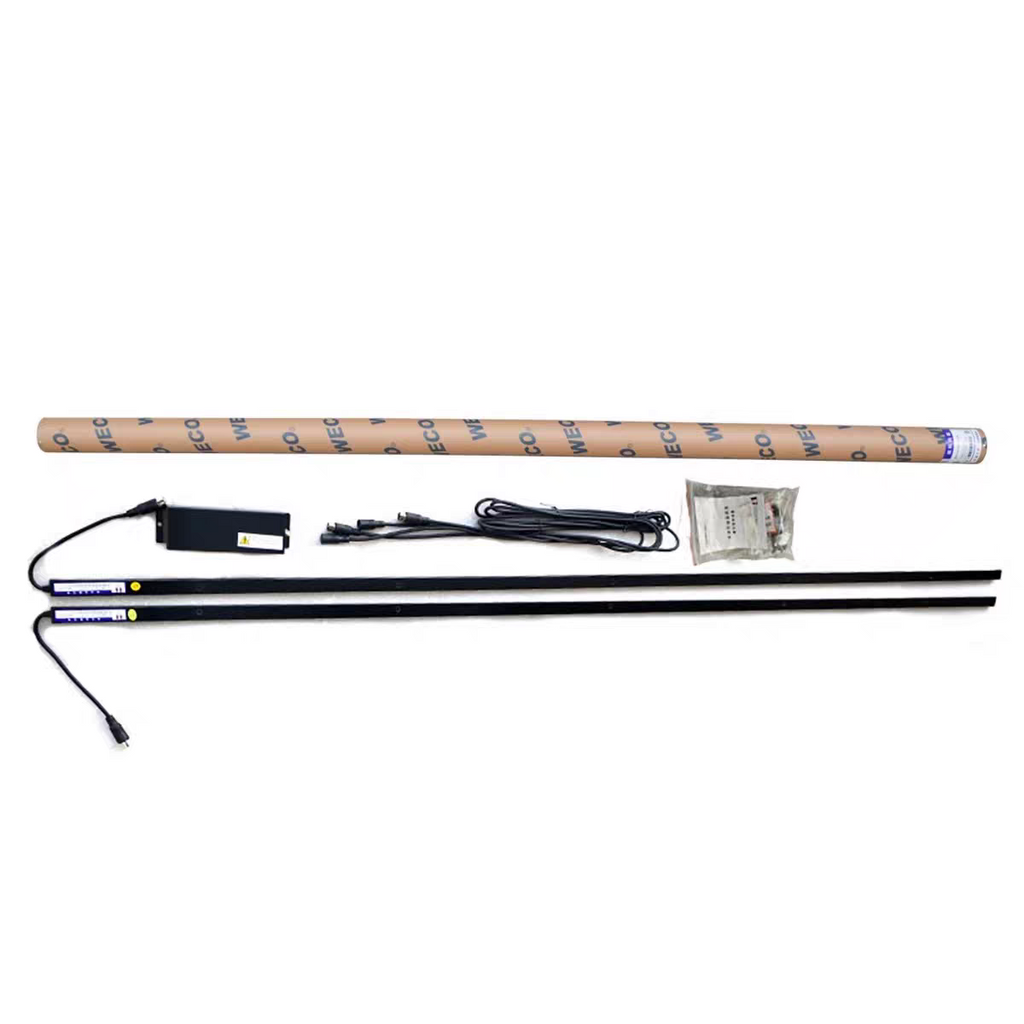

Connecting Cable Options
- 2×0.5m – Standard central-opening lift doors
- 2×3.5m – Side-opening lift doors
- 1×2.5m, 1×4.5m – New side-opening lift doors
- 4×2.5m – Four-panel central-opening lift doors
Certifications
EN12015 / EN12016 (General & Safety circuit level) | GB7588 compliant (models with ≥36 diode sets)
Minimum Order Quantity: 20 pieces | Bulk pricing available upon request
Contact us via WhatsApp or email for pricing, model selection, and technical consultation.
