FWD GETM Villa Series — Compact Gearless Traction Machine for Home & Villa Elevators
Price from USD $700. Contact us for exact model pricing and availability.
The FWD GETM Villa series offers compact, quiet, and energy-efficient permanent magnet synchronous gearless traction machines specifically designed for residential, villa, and small commercial elevator applications. With a lightweight design and low noise operation, these machines are ideal for installations where space and comfort are priorities.
Model Overview
| Model | Max. Rated Load | Motor Weight | Brake Type |
|---|---|---|---|
| GETM1.5T3 | 850 kg | 55 kg | 1×(ZD2Z2-130W) |

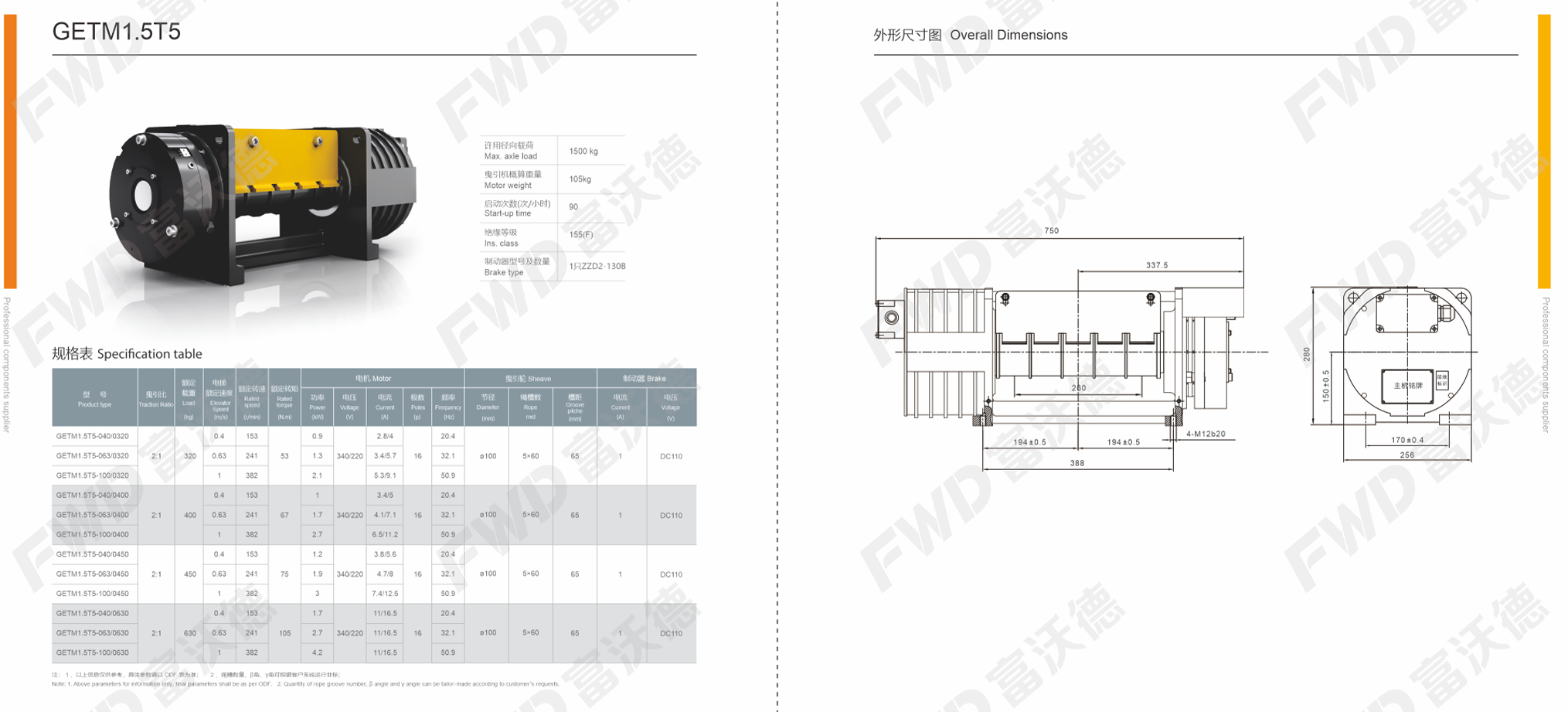

| GETM1.5T5 | 1,500 kg | 105 kg | 1×(ZD2Z02-1500) |

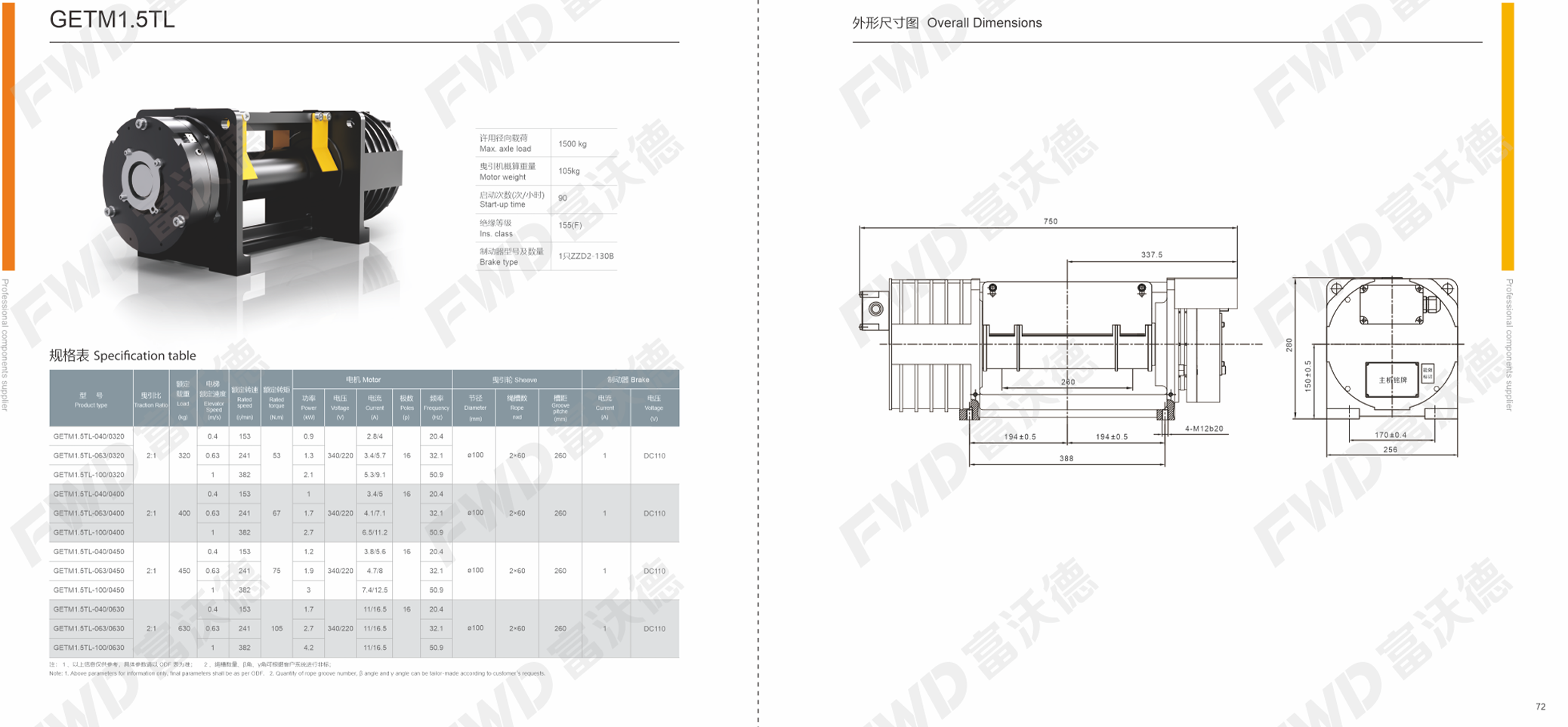

| GETM1.5TL | 1,500 kg | 115 kg | 1×(ZD2Z01-1606) |

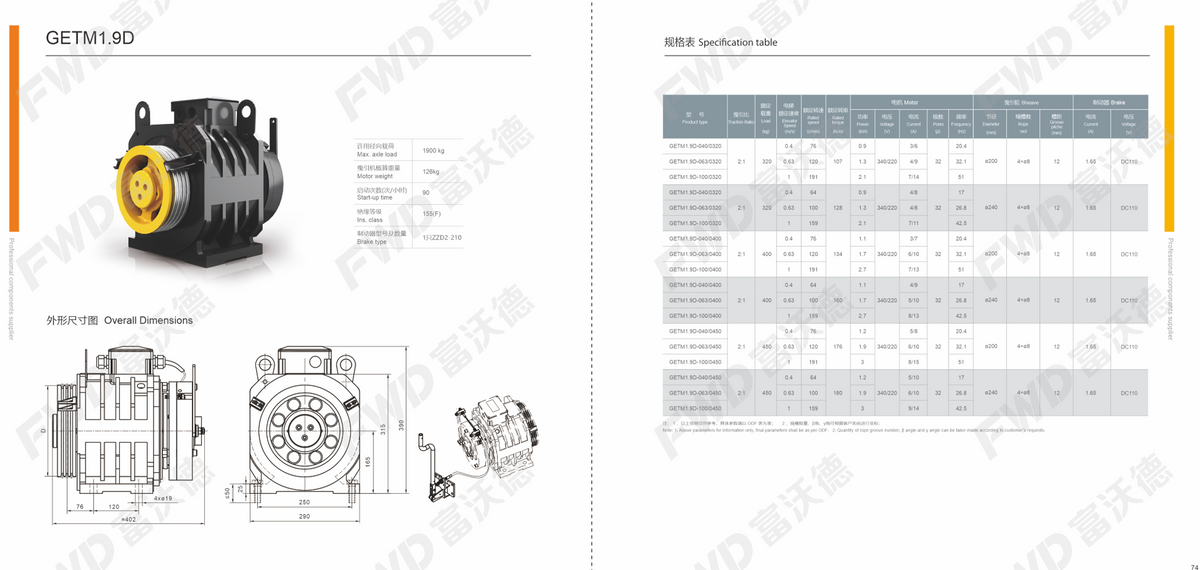

| GETM1.9D | 1,600 kg | 120 kg | 1×(ZD2Z02-250) |

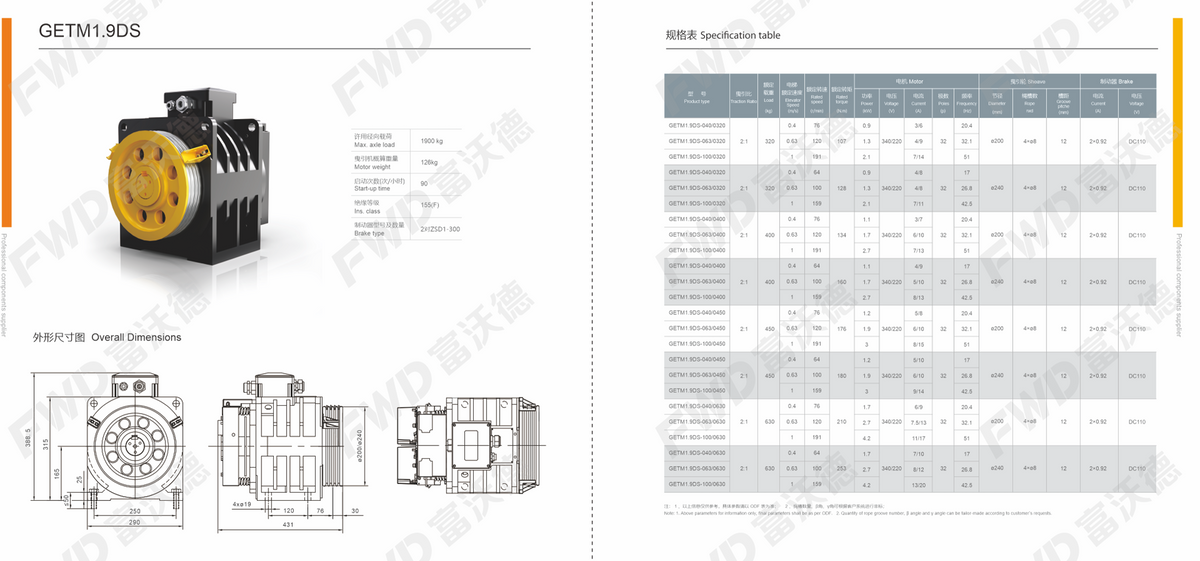

| GETM1.9DS | 1,105 kg | 120 kg | 2×(ZD2Z01-300) |

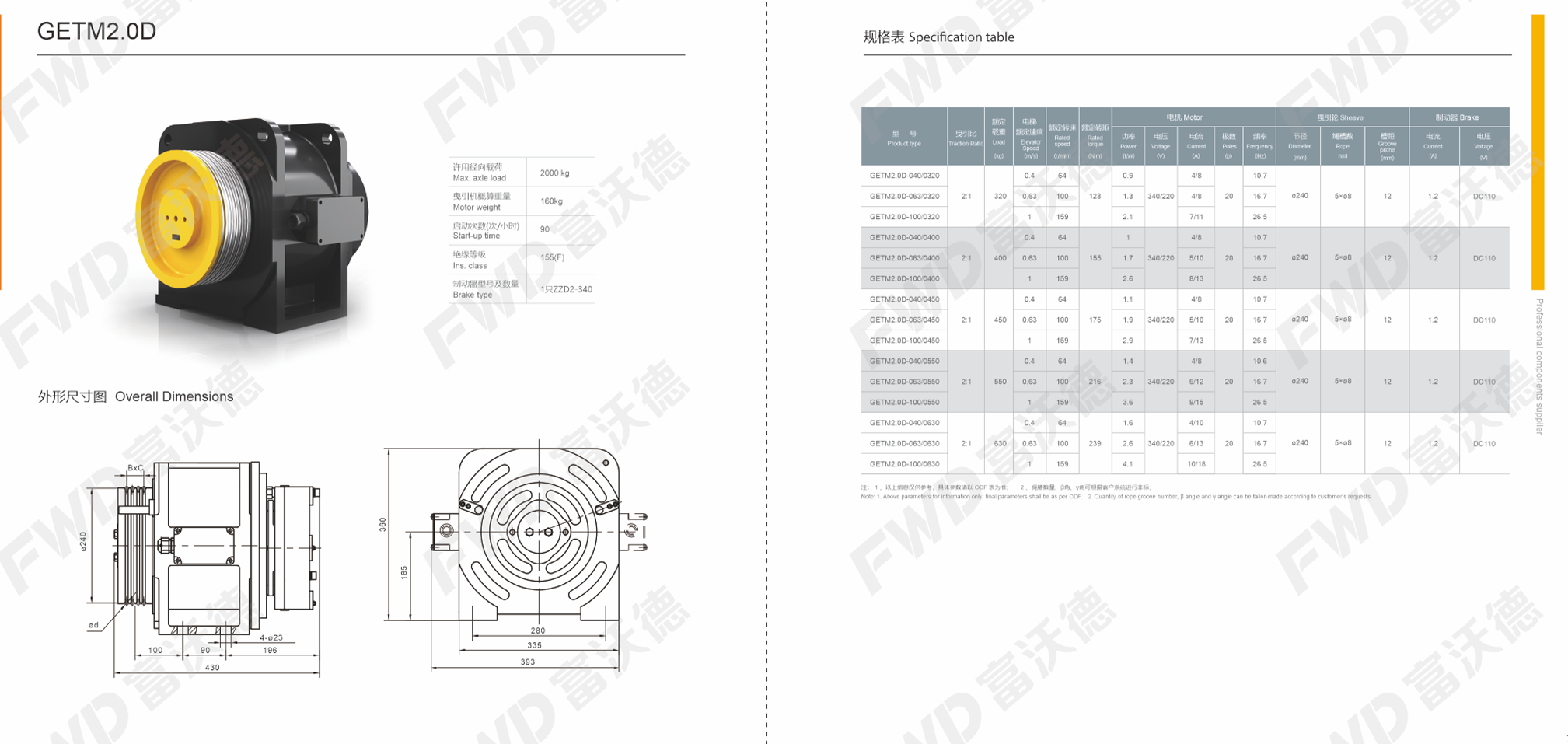

| GETM2.0D | 2,000 kg | 160 kg | 1×(ZD2Z2-340) |
Key Features
- Ultra-compact and lightweight design — ideal for residential and villa elevator shafts
- Permanent magnet synchronous motor (PMSM) — silent, smooth, energy-efficient operation
- Low starting torque and minimal vibration for superior ride comfort
- Compatible with major residential elevator control systems
- Compliant with GB/T and international elevator safety standards
Applications
Designed for home elevators, villa elevators, and small commercial lifts requiring rated loads from 850 kg to 2,000 kg. Suitable for low-rise residential buildings, private villas, and boutique hotels.
How to Order
Please contact us via WhatsApp or the contact form with your required model, rated load, speed, and installation details. We will provide a detailed quotation and lead time.
