Elevator Hall Call Buttons & HMI Panels – Full Range

Comprehensive range of elevator human machine interface panels including hall call buttons (HOP), car operating panels (COP), arrival indicators, and display-free call boxes. Suitable for passenger elevators, villa elevators, escalators, and special applications. Contact us for pricing and model selection.

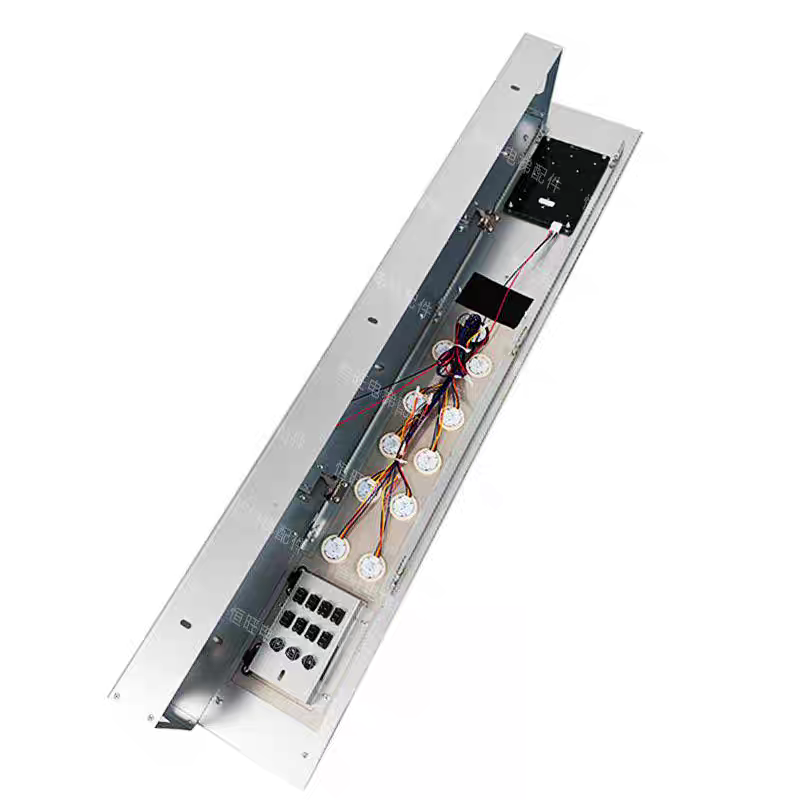

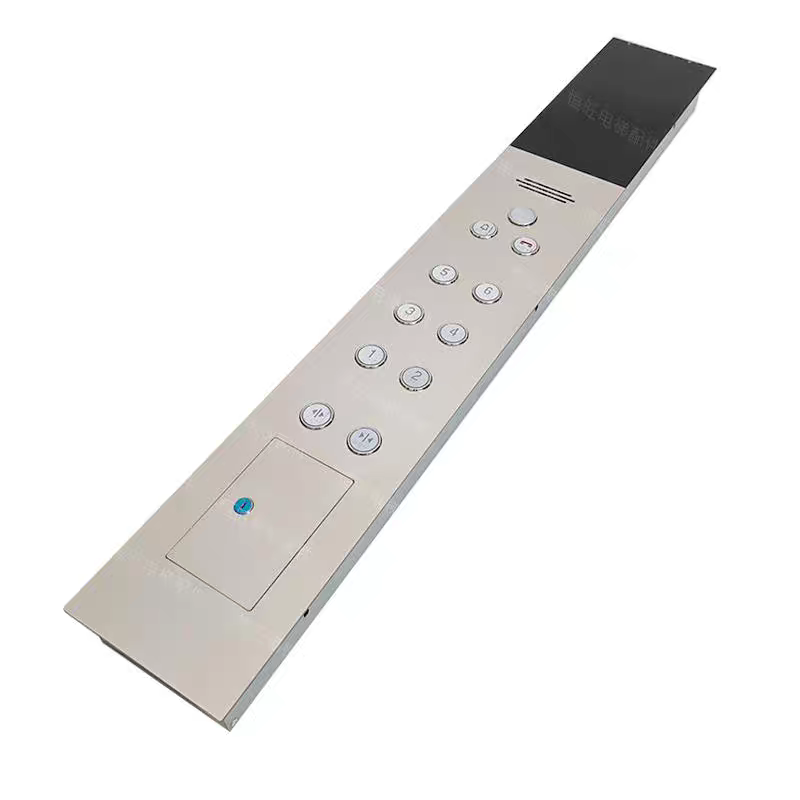

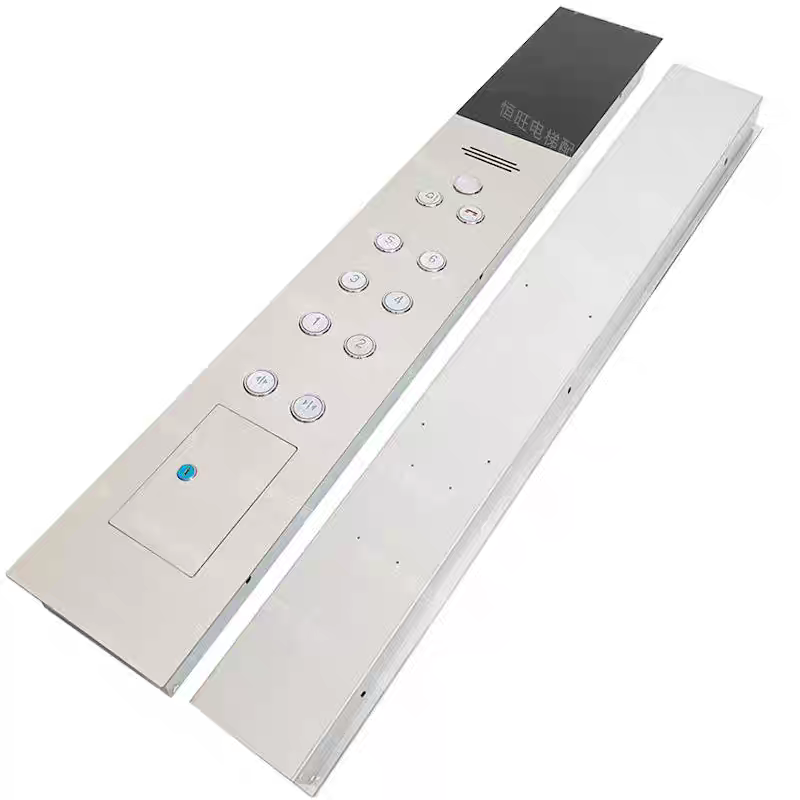

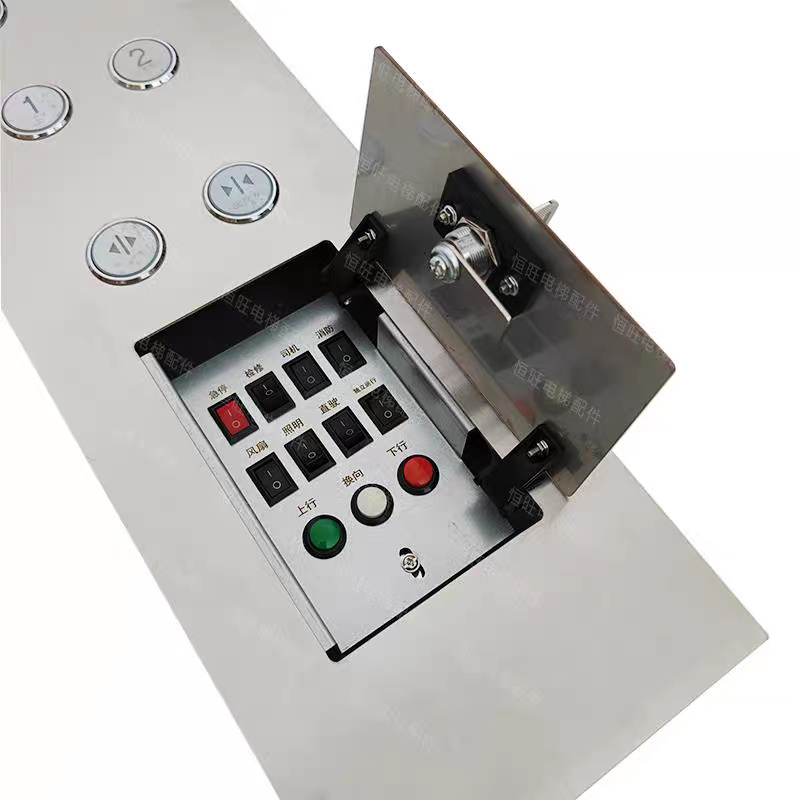

KN-COP Series – Handicapped Operating Panels

• KN-COP-173 – With bottom box | Panel: 485×300×56mm | Material: C1 Hairline | Floors: 2–10
• KN-COP-174 – Without bottom box | Panel: 485×300×25mm | Material: C2 Mirror | Floors: 11–18
• KN-COP-175 – Without bottom box | Panel: 485×300×25mm | Material: C3 Rose Gold | Floors: 19–26
• KN-COP-176 – With bottom box | Panel: 485×300×56mm | Material: C4 Rose Gold | Floors: 27–36

KN-HOP-500 Series – Standard Passenger Elevator Hall Call Buttons

• KN-HOP-501 – 335×90×12mm | C1 Hairline
• KN-HOP-FC – 300×50×60mm | C2 Transparent
• KN-HOP-G – 300×90×17mm | C3 Rose Gold | R1 Raised button
• KN-HOP-O – 310×90×12mm | C4 Rose Gold | D5 Blind-friendly
• KN-HOP-P5 – 310×100×12mm | C3 Titanium
• KN-HOP-P6 – 310×100×12mm | D5 Blind-friendly
• KN-HOP-C1 – 380×100×20mm | C6 Champagne
• KN-HOP-H2 – 330×100×12mm | C7 Ancient

KN-HOP-601~624 Series – Villa Elevator Hall Call Buttons

• KN-HOP-601~608 – Narrow strip designs, 120×45 to 250×88mm
• KN-HOP-609~624 – LCD display call boxes, 2.8” to 7” screens, touch-free options available

KN-HOP-123~154 Series – LCD Display Hall Call Buttons

• LCD floor indicator, multiple button styles (Raised / Recessed / Blind-friendly)
• Colours: YS1 Blue / YS2 Red / YS3 White illumination

KN-DZD / KN-ZH / KN-TWHX Series – Arrival Indicators & Display-Free HOPs

• Arrival indicators, simple call buttons, and display panels available

Colour & Material Options

• Hairline stainless / Mirror / Rose Gold / Titanium / Champagne / Ancient finish
• Button types: Raised (R1) / Recessed (L) / Blind-friendly Braille (D5)

Minimum Order Quantity: Per inquiry | Pricing available upon request

Contact us via WhatsApp or email with your required model, quantity, and colour preference for a customized quote.
