FWD GETM DS/DH Series — Flat Gearless Traction Machine for Passenger Elevators
Price from USD $1,000. Contact us for exact model pricing and availability.

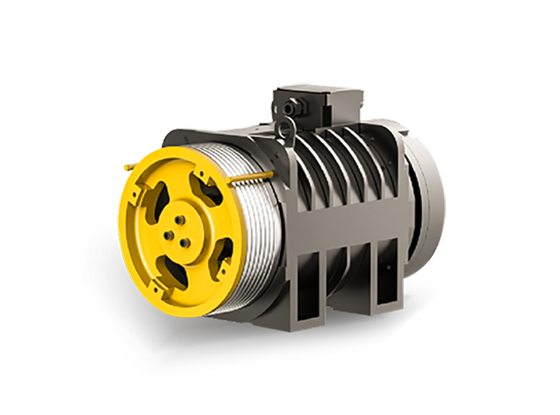

The FWD GETM DS/DH series features a compact flat (disc-type) permanent magnet synchronous gearless traction machine design, ideal for machine-room-less (MRL) installations and applications requiring a low-profile footprint. Available in multiple load and speed configurations from 2,500 kg to 5,000 kg rated capacity.
Model Overview
| Model | Max. Rated Load | Motor Weight | Brake Type |
|---|---|---|---|

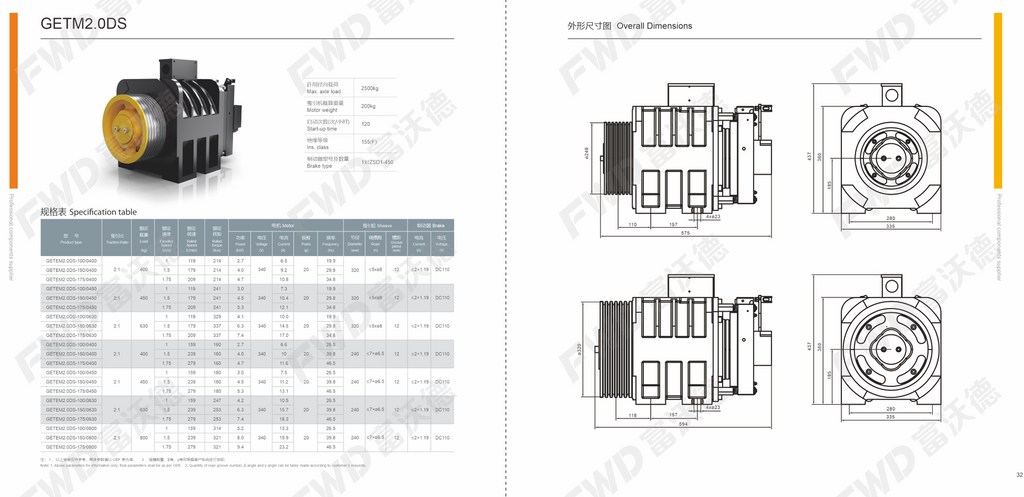

| GETM2.0DS | 2,500 kg | 230 kg | 1×(ZD1-500) |

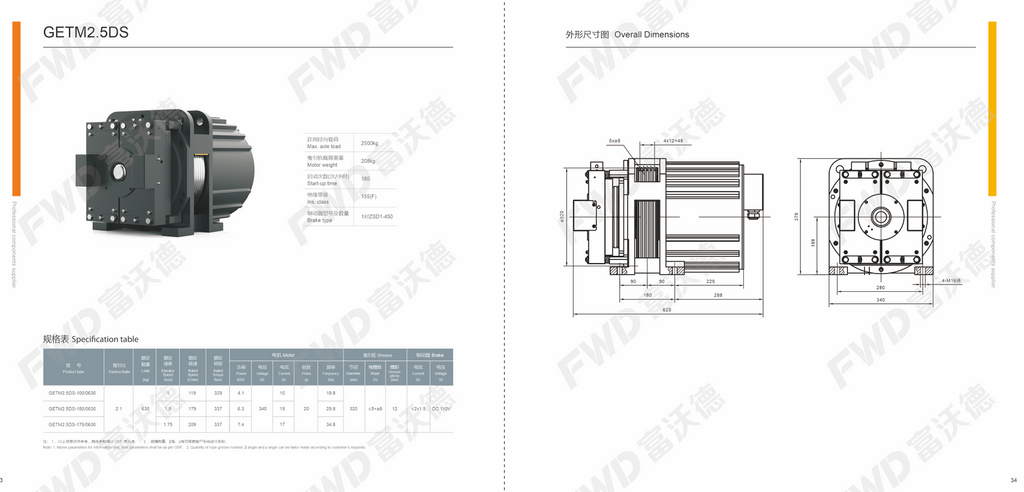

| GETM2.5DS | 2,500 kg | 230 kg | 1×(ZD1-450) |

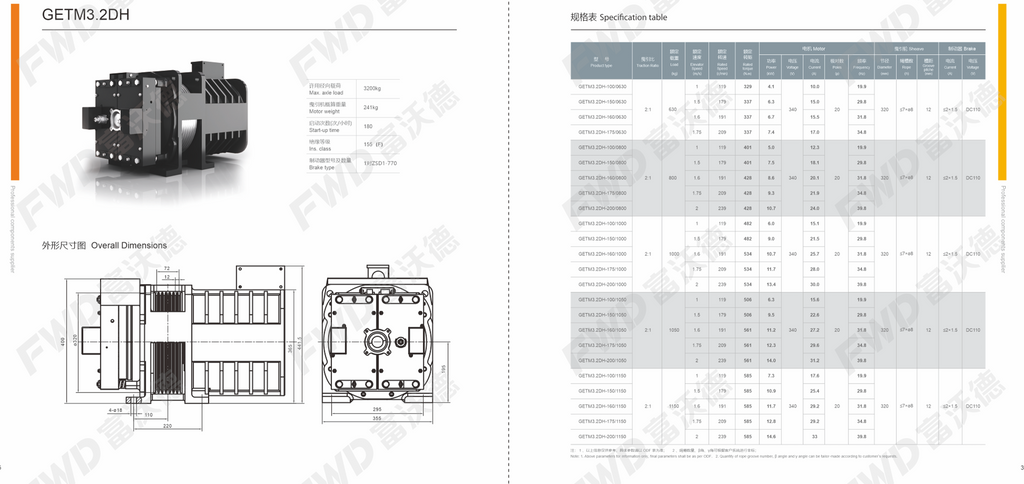

| GETM3.2DH | 3,200 kg | 241 kg | KMB2-1 31B |

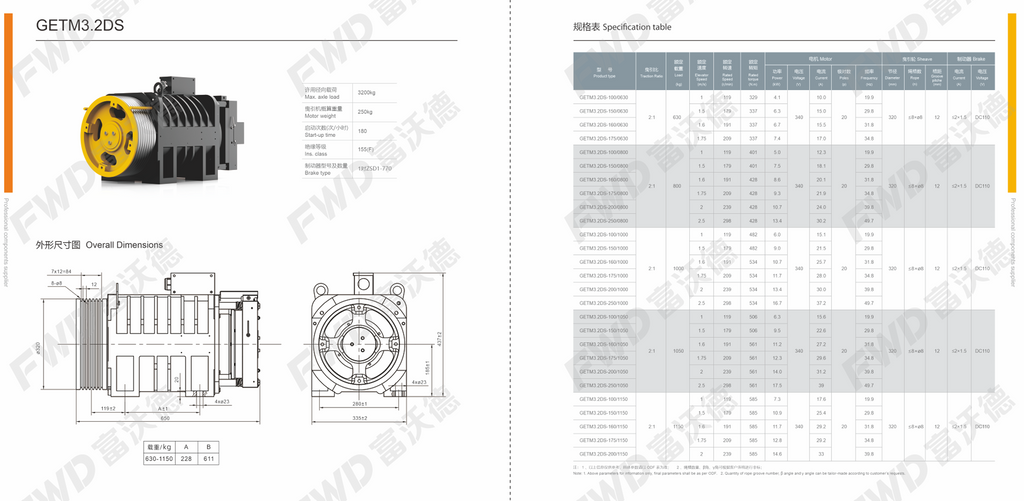

| GETM3.2DS | 3,250 kg | 250 kg | 1×(ZD201-750) |

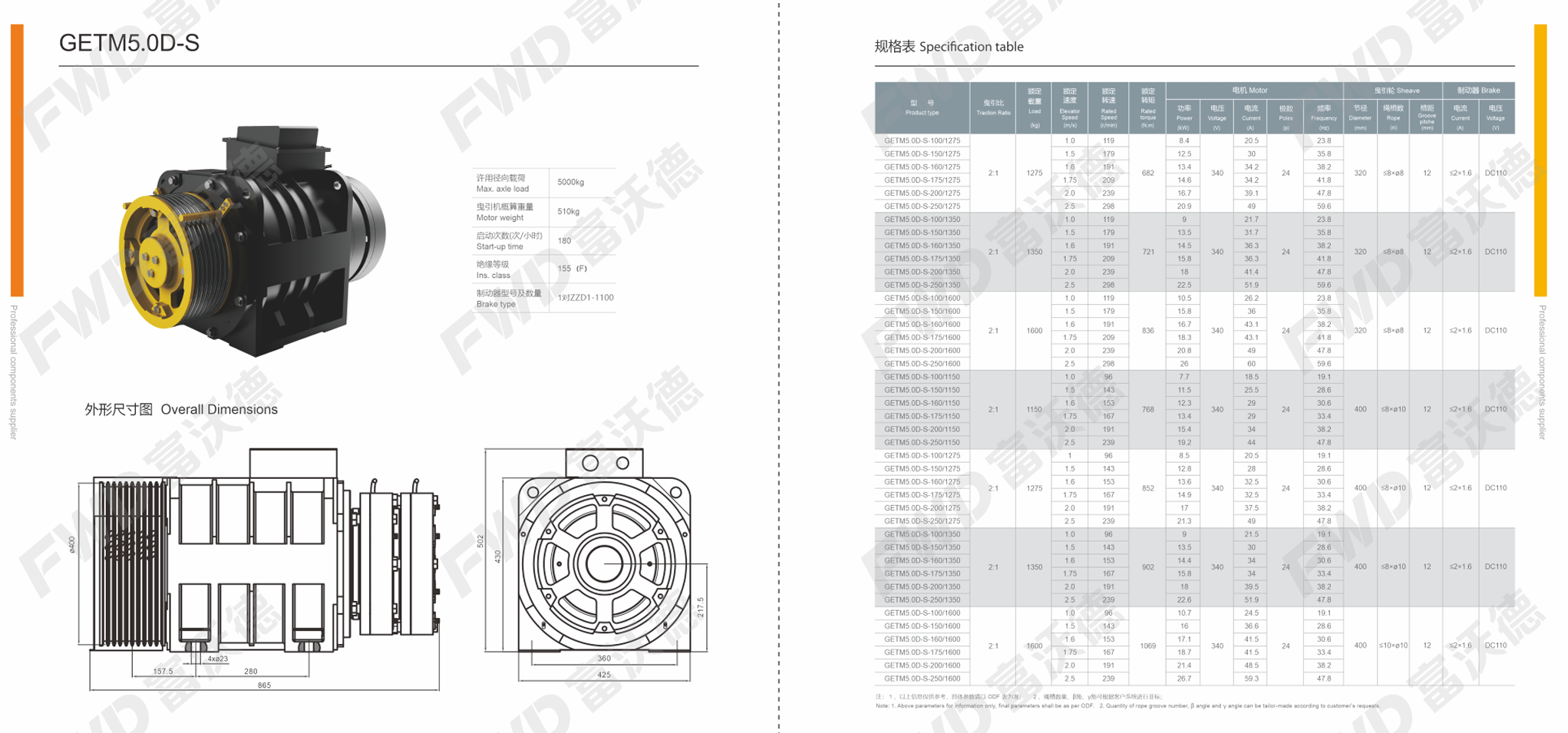

| GETM5.0D-S | 5,000 kg | 515 kg | 1×(ZD201-1500) |

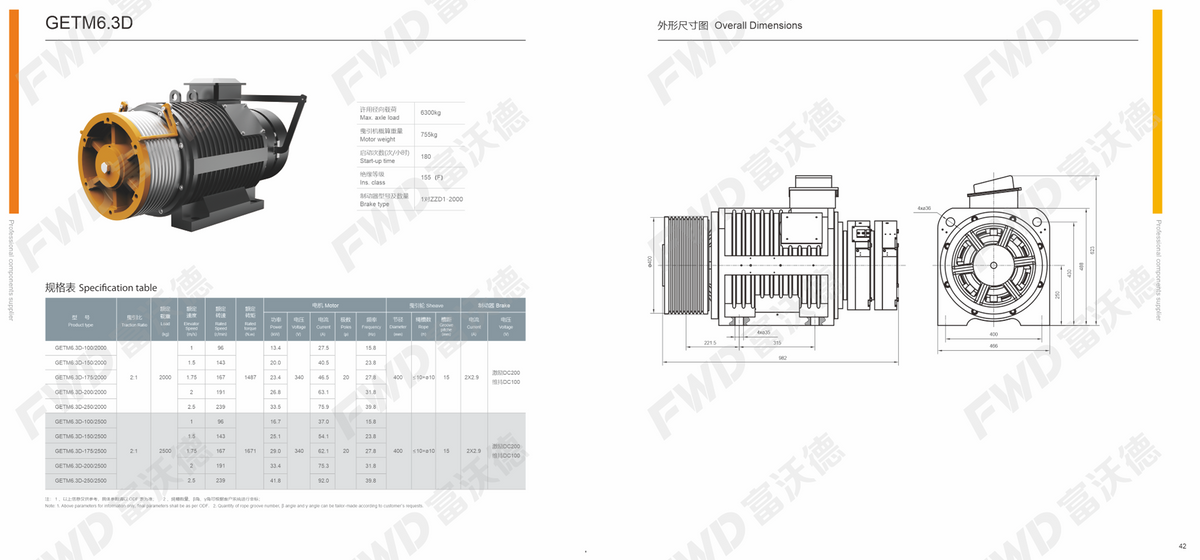

| GETM6.3D | 5,000 kg | 194 kg | 1×(ZD201-2000) |
Key Features
- Flat disc-type permanent magnet synchronous motor (PMSM)
- Ultra-compact profile — ideal for MRL (machine-room-less) elevator installations
- High efficiency, low noise, minimal vibration
- Wide speed range: 1.0–2.5 m/s (model dependent)
- Compatible with major elevator control systems
- Compliant with GB/T and international elevator standards
Applications
Suitable for MRL passenger elevators, commercial buildings, residential towers, and installations where space is limited. Rated loads from 2,500 kg to 5,000 kg.
How to Order
Please contact us via WhatsApp or the contact form with your required model, rated load, speed, and rope diameter. We will provide a detailed quotation and lead time.
